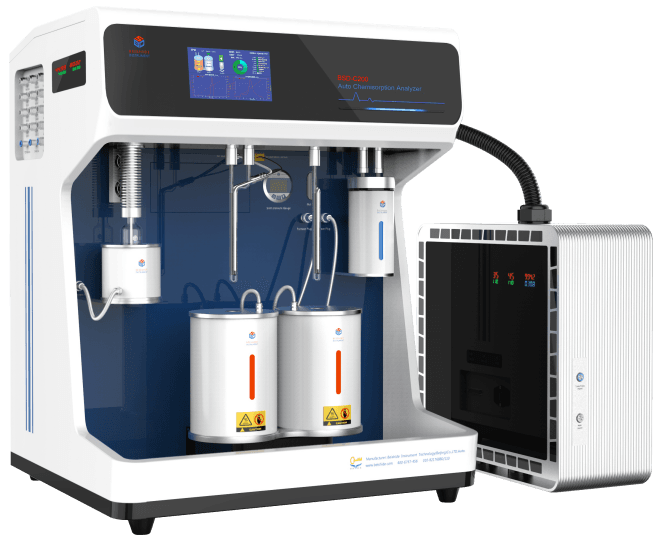

BSD-C200 AUTOMATIC CHEMISORPTION ANALYZER

The BSD-C200, developed by BSD Instrument, is a cutting-edge system designed to analyze the active sites on material surfaces through dynamic chemisorption. With functions like Temperature Programmed Desorption (TPD), Oxidation (TPO), Reduction (TPR), Pulse Titration, etc., it provides detailed characterization of active sites. The system also features adsorption kinetics analysis and auto-cyclic adsorbent service life assessment. With its fast testing capabilities, integrated backup heating furnace, and flexible cyclic testing options, the BSD-C200 enables precise analysis under various settings, ensuring efficiency and reliability for advanced material characterization.

Get A Quote

File not exist! Data Sheet

Key Feature

Function

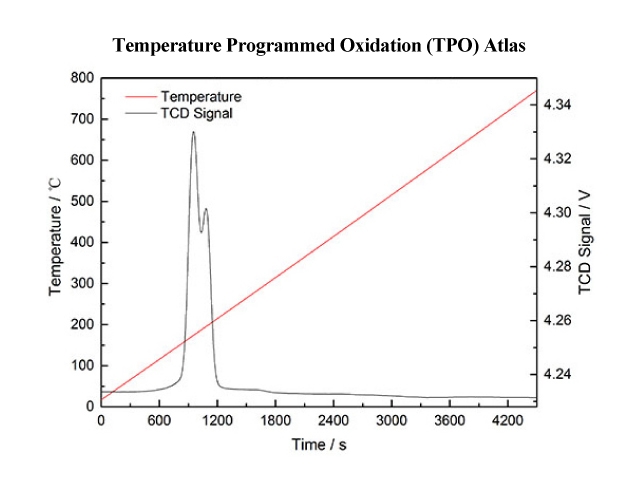

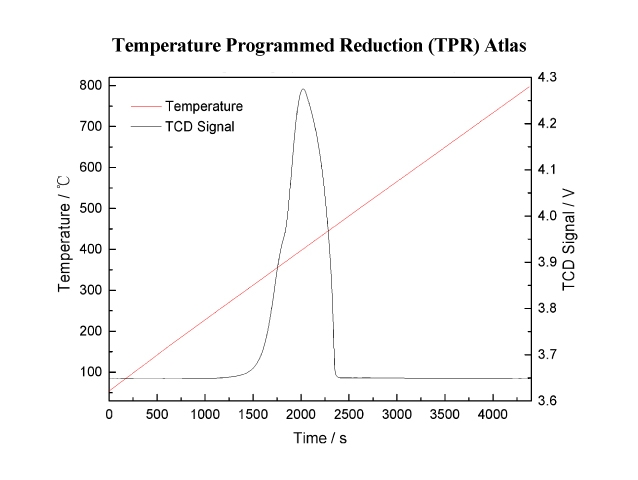

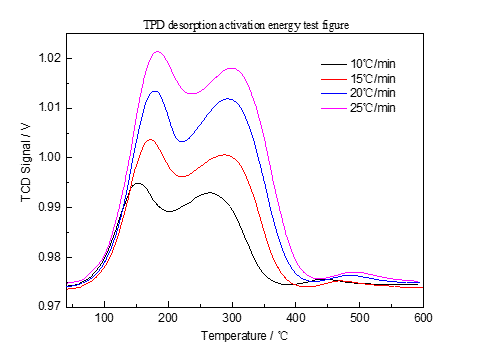

TPD, TPO TPR, TPSR, TPS

Dual Furnace Switch

Immediate testing after sample activation

Pipeline Clean Up Process

Complete and efficient removal of residual gas by pumping

Full Automation

Automatic test process, no manual handle

Automatic Cyclic Test

Automatic multi test with different settings

Heating Control

Smooth and straightforwards heating curve

Reference Tube

No direct contact of sample with sensors

Two Modes of TCD

Wide range and High sensitivity

MS Compatibility

Compatible with Mass Spectrometer and FT-IR

Specifications

Specifications	Details
Analysis Station	1 with full automatic design
Gas Mixture	3x MFCs
Gas Inlets	12x gas inlets
Adsorbent gas	Various corrosive and non corrosive gases and vapors
Heating Furnace	2
Temperature	-160°C to1200°C,-196°C to 800°C optional
Pressure	Ambient pressure to 1MPa, 3MPa and 10MPa optional

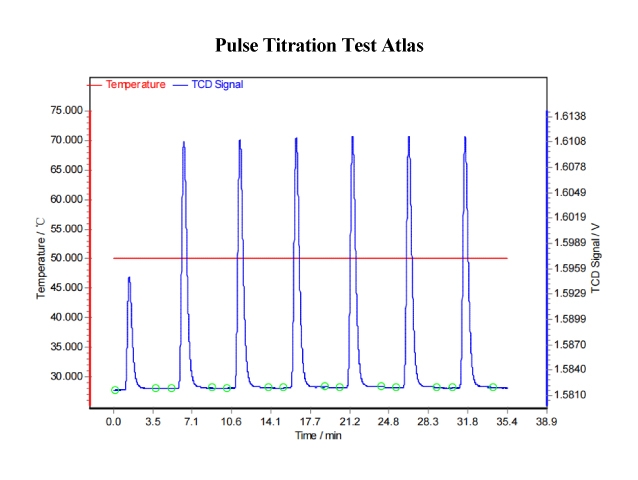

Pulse Titration	Quantitative volume 0.5ml, and optional 1ml, 5ml
Function	TPD, TPO TPR, TPSR, TPS, Pulse Titration

Full Automation

C200 is designed with two furnaces and system allow auto-switching from activation to chemisorption test right away. No need to wait for furnace cooling down. Built-in cooling system will prepare the activation furnace for test after. The design not only increase test efficiency but also makes automatic cyclic test possible.

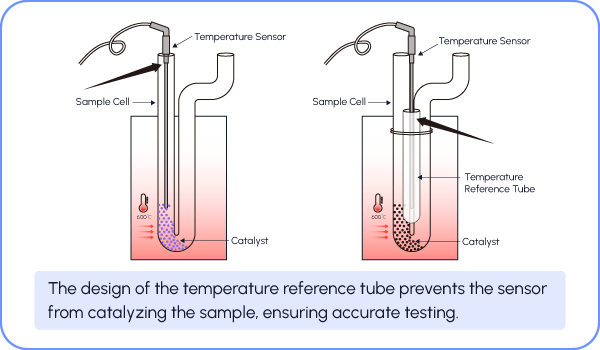

Temperature reference tube

Temperature reference tube is placed alongside the sample in U-shaped sample tube, which ensures analysis results are consistent with samples and avoid direct contact with samples.

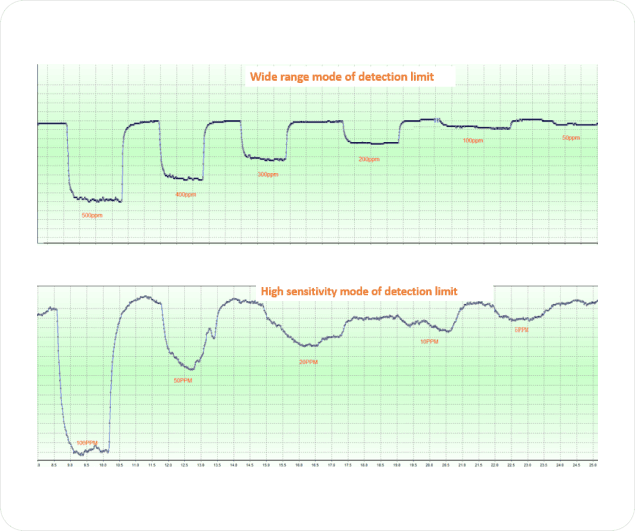

Two Modes of TCD

The C200 is equipped with two versatile TCD modes, offering a broad detection range to handle both strong signals and low-level signals with exceptional sensitivity. This dual-mode capability ensures precise and accurate signal capture across a wide spectrum, making it ideal for a variety of analytical applications.

Other Feature

The integrated cold trap system effectively captures low-boiling point vapors, preventing them from interfering with test results and ensuring consistent, accurate measurements every time.

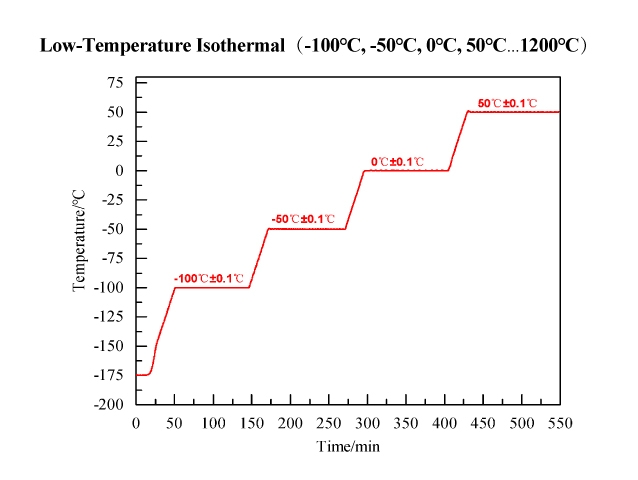

With programmable heating capabilities ranging from sub-ambient to high temperatures, the system features advanced isothermal sub-ambient technology, providing precise and reliable temperature control across a wide range of conditions.

The state-of-the-art vapor generation system, utilizing bubble and saturation condensation technologies, delivers a stable and consistent vapor flow, ensuring enhanced measurement accuracy and reliable results.

The high-performance vacuum system efficiently removes residual gases, maintaining an ultra-clean, airtight environment to support the highest standards of reliability and precision in testing.
